Intel Sanitizer on Aurora¶

Introduction¶

Intel Sanitizer is a correctness tool to detect addressability issues, memory leaks, data races and deadlocks, and use of uninitialized memory. With the addition of the sanitizer compiler flags, a sanitizer device image is created. At runtime, the sanitized images are checked. If they exist, the runtime enables a specific sanitizer layer in the unified runtime module to support sanitizer functionality.

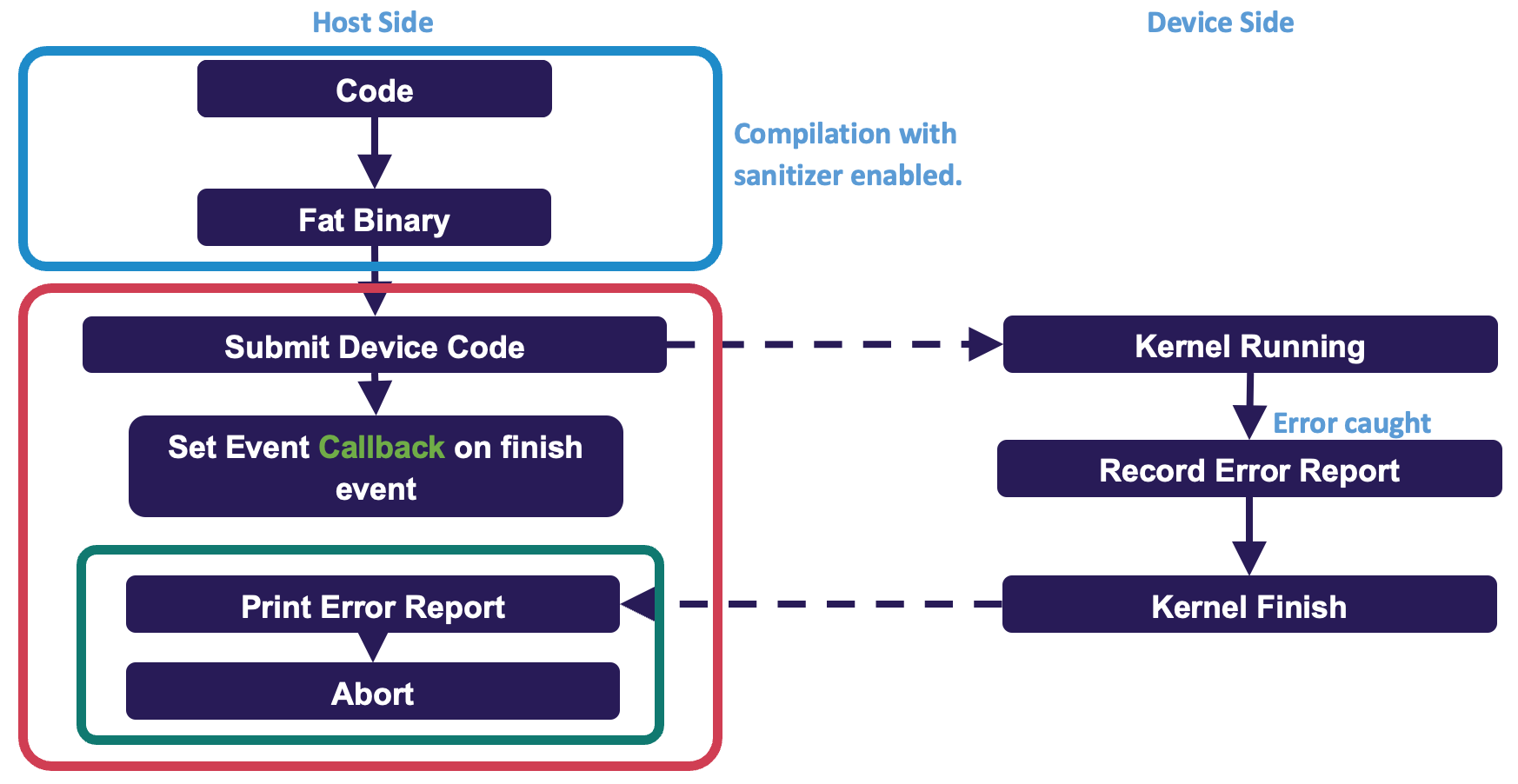

Sanitizer framework

Address, Memory, and Thread Sanitizers are provided with the oneAPI compiler for device codes on Aurora with the following features:

Address Sanitizer (ASAN)
Out-of-bound check
Use-after-free
Misaligned access
Mismatched deallocation
Misusing host & device pointers
Invalid kernel argument
Mismatched queue
Memory Sanitizer (MSAN)
Use of uninitialized memory
Thread Sanitizer (TSAN)
Deadlock
Data race

Building and running instruction with Sanitizers¶

Address Sanitizer (ASAN)¶

Enabling device-side ASAN on a SYCL kernel

icpx –fsycl –Xarch_device –fsanitize=address -g demo.cpp
./demo

Enabling device-side ASAN on OpenMP code (with icx, icpx or ifx)

icpx -fiopenmp -Xarch_device -fsanitize=address -fopenmp-targets=spir64 -g demo.cpp
LIBOMPTARGET_PLUGIN=unified_runtime UR_ENABLE_LAYERS=UR_LAYER_ASAN ./demo

An error message example (e.g., OpenMP Fortran example)

==== DeviceSanitizer: ASAN
…
====ERROR: DeviceSanitizer: out-of-bounds-access on Device USM (0xff00fffff4a00280)
WRITE of size 8 at kernel <__omp_offloading_10301_140c146_gpu_rhf_j01_ssss__l85> LID(163, 0, 0) GID(12707, 0, 0)
#0 OMP TARGET outline from gpu_rhf_j01_ssss_ line 85 /tmp/debug-bench/applications/GAMESS/build/Release/object/tgpu_ompmod_sp.F90:106

Memory Sanitizer (MSAN)¶

Enabling device-side MSAN on a SYCL kernel

icpx –fsycl –Xarch_device –fsanitize=memory -g demo.cpp
./demo

Enabling device-side MSAN on OpenMP code (with icx, icpx or ifx)

icpx -fiopenmp -Xarch_device -fsanitize=memory -fopenmp-targets=spir64 -g demo.cpp
LIBOMPTARGET_PLUGIN=unified_runtime UR_ENABLE_LAYERS=UR_LAYER_MSAN ./demo

An error message example (e.g., OpenMP C++ example)

==== DeviceSanitizer: MSAN
…
====WARNING: DeviceSanitizer: use-of-uninitialized-value
use of size 1 at kernel <__omp_offloading_10301_12070fb__ZN6openmc19process_init_eventsEi_l178> LID(0, 0, 0) GID(3648, 0, 0)
#0 OMP TARGET outline from openmc::process_init_events(int) line 178 /localdisk2/maosuzha/ics_workspace/debug-bench/applications/OpenMC/src/src/event.cpp:180

Thread Sanitizer (TSAN)¶

Enabling device-side TSAN on a SYCL kernel

icpx –fsycl –Xarch_device –fsanitize=thread -g demo.cpp
./demo

Enabling device-side TSAN on OpenMP code (with icx, icpx or ifx)

icpx -fiopenmp -Xarch_device -fsanitize=thread -fopenmp-targets=spir64 -g demo.cpp
LIBOMPTARGET_PLUGIN=unified_runtime UR_ENABLE_LAYERS=UR_LAYER_TSAN ./demo

An error message example (e.g., SYCL example)

==== DeviceSanitizer: TSAN
…
====WARNING: DeviceSanitizer: data race
When write of size 1 at 0xff00fffffffe0000 in kernel <typeinfo name for main::{lambda(sycl::_V1::handler&)#1}::operator()(sycl::_V1::handler&) const::Test> LID(7, 0, 0) GID(23, 0, 0)
  #0 typeinfo name for main::'lambda'(sycl::_V1::handler&)::operator()(sycl::_V1::handler&) const::Test /tmp/demo.cpp:10

Notes¶

For CPU-side sanitizers, you can build your code with -Xarch_host instead of -Xarch_device.
To enable memory sanitizer origin tracking, you can use -fsanitizer-memory-track-origins=1.

Known issues and workarounds¶

No DEEPBIND support from host-side sanitizers¶

The host-side sanitizer does not support DEEPBIND. You will get errors like the following:

==104942==You are trying to dlopen a libigc.so.2 shared library with RTLD_DEEPBIND flag which is incompatible with sanitizer runtime (see https://github.com/google/sanitizers/issues/611 for details). If you want to run libigc.so.2 library under sanitizers please remove RTLD_DEEPBIND from dlopen flags.

To avoid this issue, users should disable DEEPBIND when dlopen other libraries with the following environemental variables:

export ASAN_OPTIONS=clear_deepbind_flag=1             // for address sanitizer
export MSAN_OPTIONS=clear_deepbind_flag=1             // for Memory sanitizer
export TSAN_OPTIONS=clear_deepbind_flag=1             // for thread sanitizer

or

export DisableDeepBind=1

References¶

Intel Sanitizer documentation

2025 ALCF Developer Session
