THAPI/iprof¶
Introduction¶
THAPI is a portable tracing infrastructure for heterogeneous computing applications with backends for OpenCL, L0, CUDA HIP, OPMT and MPI. iprof is a wrapper around the OpenCL, Level Zero, and CUDA tracers. It gives aggregated profiling information.
Instruction¶
Loading the THAPI module¶
Usage of iprof¶
$ iprof -h
Usage: iprof [options] [--] [command]
--trace-output PATH Define where the CTF trace will be saved.
Default: `$THAPI_HOME/thapi-traces/thapi--[trace-type][date]`
(`$THAPI_HOME` defaults to `$HOME`,
and `date` is formatted using ISO 8601 convention).
--analysis-output PATH Define where the analysis output (summary, pretty printing, etc.) will be saved.
Default: printed to `stdout`.
-m, --tracing-mode MODE Define the category of events to trace.
Values allowed: ["minimal", "default", "full"]
Default: default
--traced-ranks RANK Select which MPI ranks will be traced.
Use -1 to trace all ranks.
Default: -1
--[no-]profile Enable or disable device profiling.
Default: true
--[no-]analysis Enable or disable analysis of the LTTng trace.
Default: true
-b, --backends BACKENDS Select which backends to use and their grouping level.
Format: backend_name[:backend_level],...
Default: mpi:3,omp:2,cl:1,ze:1,cuda:1,hip:1
--[no-]archive Enable or disable archive support.
Default: false
-r, --replay [PATH] Replay traces for post-mortem analysis.
If `PATH` is omitted, it defaults to the newest trace in `$HOME/thapi-traces/`.
-t, --trace Pretty-print the LTTng trace.

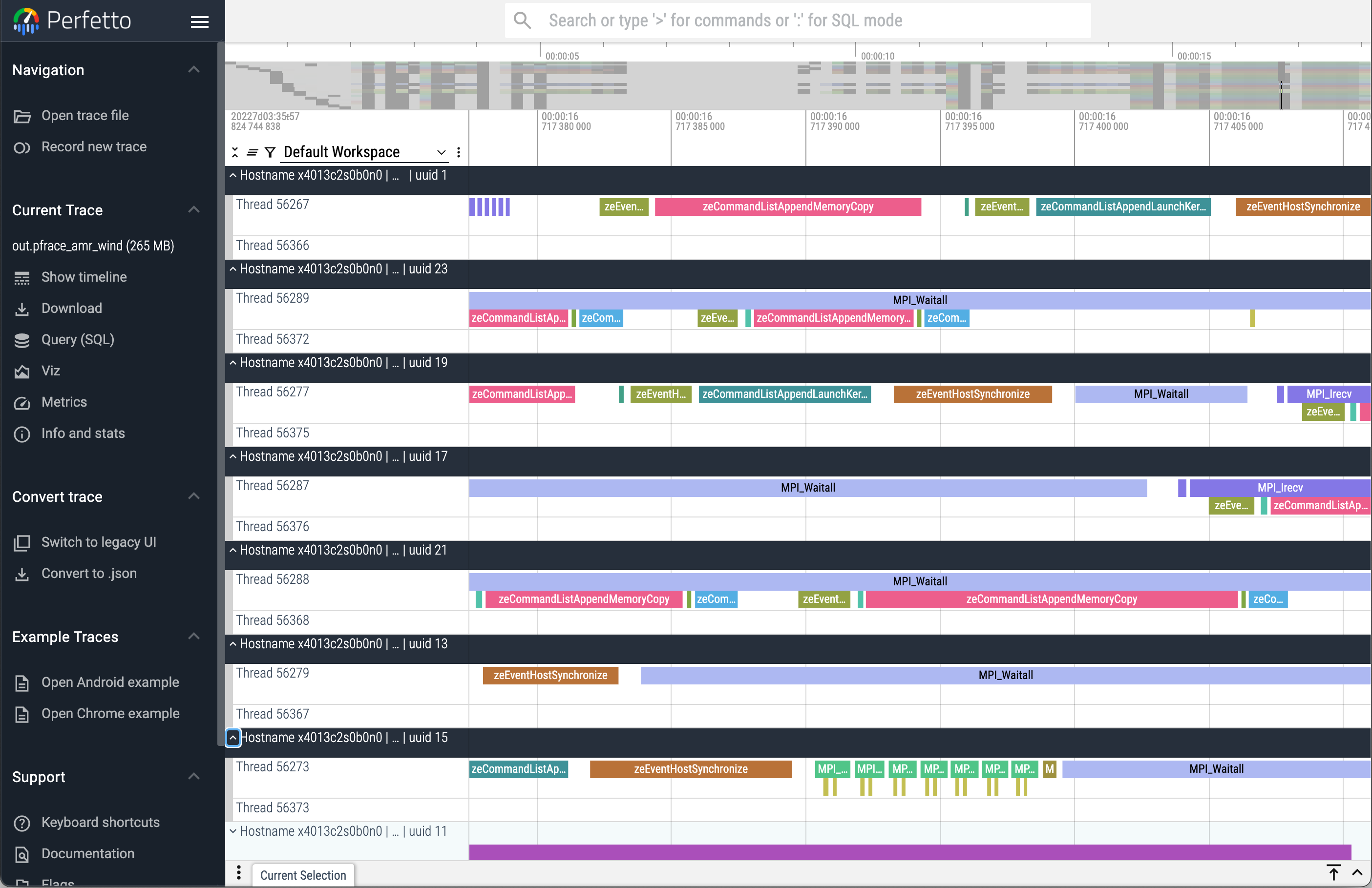

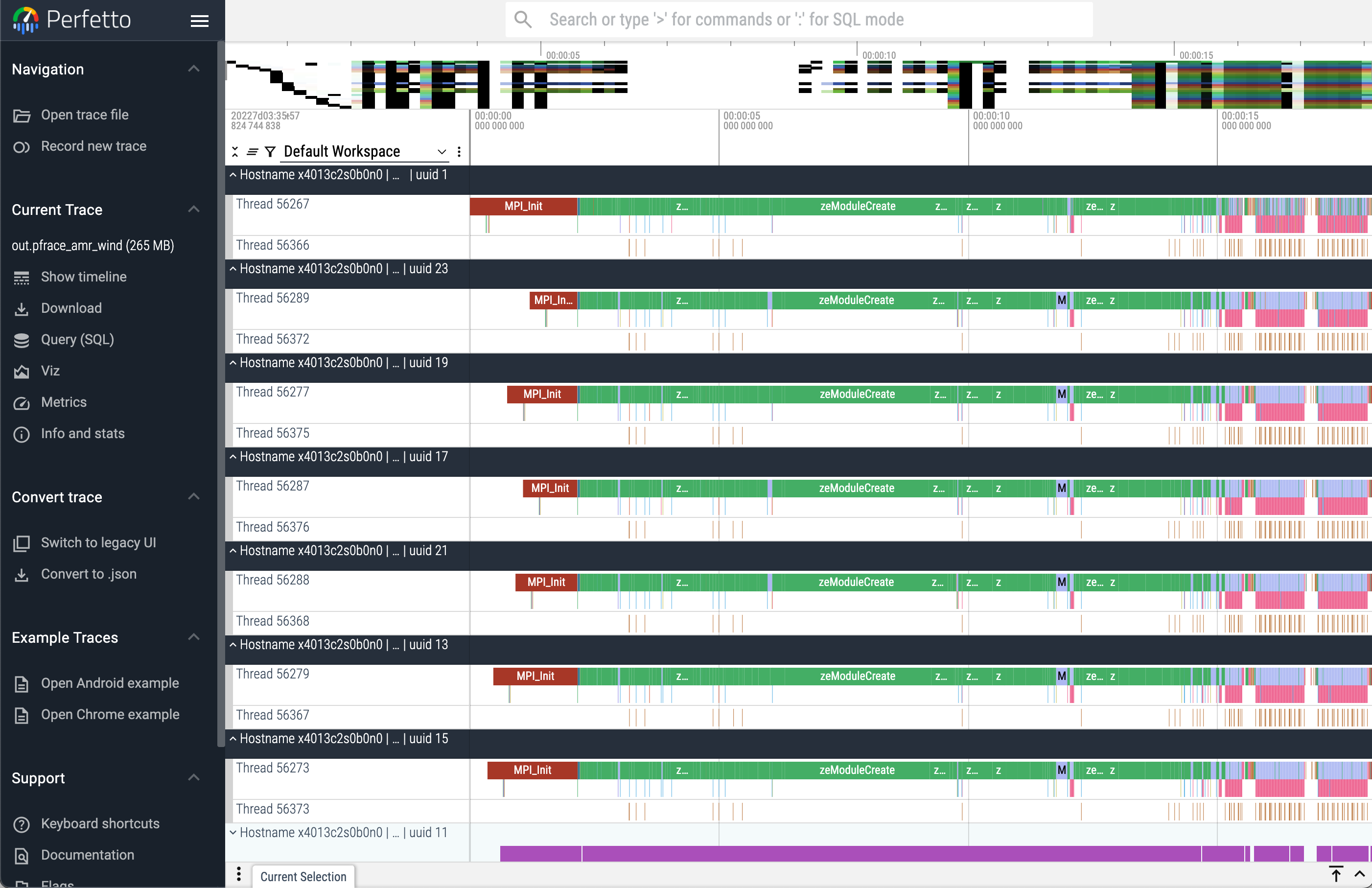

-l, --timeline [PATH] Dump the trace timeline to a binary file.
If `PATH` is omitted, defaults to `out.pftrace`.
Open with Perfetto: `https://ui.perfetto.dev/#!/viewer`.
-j, --json Output the tally in JSON format.
-e, --extended Print the tally for for each Hostname / Process / Thread / Device.
-k, --kernel-verbose The tally will report kernels execution time with SIMD width and global/local sizes.
--max-name-size SIZE Set the maximum allowed kernels name size.
Use -1 for no limit.
Default: 80
-s, --sample Enable counters sampling.
--metadata Display trace metadata.
-v, --version Print the Version String.
-h, --help Display this message.
--debug [LEVEL] Set the debug level.
If `LEVEL` is omitted, it defaults to 1.
Default: 3
__
For complaints, praises, or bug reports please use: <(o )___
https://github.com/argonne-lcf/THAPI ( ._> /
or send email to {apl,bvideau}@anl.gov `---'
Running with an MPI application¶
$ mpirun <mpi arguments> iprof <iprof arguments> -- <application excutable binary> <application arguments>
Simple examples¶
iprof for amr-wind application with 24 MPI ranks on two Aurora nodes¶
$ mpirun -n 24 --ppn 12 gpu_tile_compact.sh iprof -- ../amr_wind abl_godunov.inp
==============================================================================
AMR-Wind (https://github.com/exawind/amr-wind)
AMR-Wind version :: v3.4.2
AMR-Wind Git SHA :: ed475a0533dfacf1fdff0b707518ccf99040d9f9
AMReX version :: 25.04-9-g30a9768150c4
...<skipping application standard output>...
AMReX (25.04-9-g30a9768150c4) finalized
THAPI: Trace location: /home/jkwack/thapi-traces/thapi_aggreg--2025-05-18T22:32:29-05:00
BACKEND_MPI | 2 Hostnames | 24 Processes | 24 Threads |
Name | Time | Time(%) | Calls | Average | Min | Max |
MPI_Allreduce | 2.15min | 35.78% | 21703 | 5.95ms | 145ns | 2.21s |
MPI_Comm_create | 1.90min | 31.63% | 408 | 279.75ms | 35.80us | 6.51s |
MPI_Init | 1.59min | 26.38% | 24 | 3.97s | 343.86ms | 7.21s |
MPI_Waitall | 15.80s | 4.38% | 58360 | 270.78us | 193ns | 226.00ms |
MPI_Allgather | 2.26s | 0.63% | 72 | 31.45ms | 29.37us | 182.51ms |
MPI_Barrier | 2.14s | 0.59% | 120 | 17.82ms | 16.84us | 81.07ms |
MPI_Bcast | 558.40ms | 0.15% | 48 | 11.63ms | 29.18us | 22.95ms |
MPI_Testall | 430.25ms | 0.12% | 42384 | 10.15us | 125ns | 2.01ms |
MPI_Reduce | 425.03ms | 0.12% | 336 | 1.26ms | 2.82us | 70.40ms |
MPI_Finalize | 246.94ms | 0.07% | 24 | 10.29ms | 7.28ms | 17.41ms |
MPI_Isend | 209.20ms | 0.06% | 173930 | 1.20us | 819ns | 535.44us |
MPI_Comm_dup | 111.12ms | 0.03% | 24 | 4.63ms | 96.50us | 9.21ms |
MPI_Irecv | 110.05ms | 0.03% | 173930 | 632.71ns | 137ns | 309.75us |
MPI_Type_create_struct | 26.75ms | 0.01% | 72 | 371.50us | 1.13us | 1.18ms |
MPI_Type_contiguous | 25.81ms | 0.01% | 24 | 1.08ms | 1.01ms | 1.13ms |
MPI_Comm_split_type | 24.47ms | 0.01% | 24 | 1.02ms | 970.41us | 1.07ms |
MPI_Gatherv | 15.68ms | 0.00% | 552 | 28.40us | 387ns | 7.18ms |
MPI_Allgatherv | 1.26ms | 0.00% | 24 | 52.31us | 47.35us | 62.52us |
MPI_Comm_rank | 833.41us | 0.00% | 3342 | 249.38ns | 104ns | 7.03us |
MPI_Comm_size | 761.44us | 0.00% | 2118 | 359.51ns | 112ns | 5.63us |
MPI_Comm_free | 687.23us | 0.00% | 65 | 10.57us | 984ns | 83.16us |
MPI_Comm_group | 505.78us | 0.00% | 745 | 678.90ns | 199ns | 1.99us |
MPI_Group_free | 465.72us | 0.00% | 1153 | 403.92ns | 120ns | 4.80us |
MPI_Group_incl | 384.95us | 0.00% | 408 | 943.50ns | 339ns | 8.11us |
MPI_Wtime | 313.32us | 0.00% | 1056 | 296.70ns | 118ns | 3.01us |
MPI_Type_free | 305.71us | 0.00% | 96 | 3.18us | 113ns | 15.24us |
MPI_Get_processor_name | 61.66us | 0.00% | 24 | 2.57us | 1.63us | 4.55us |
MPI_Type_commit | 50.33us | 0.00% | 96 | 524.22ns | 119ns | 3.46us |
MPI_Get_address | 30.23us | 0.00% | 72 | 419.89ns | 118ns | 843ns |
MPI_Comm_get_attr | 25.78us | 0.00% | 24 | 1.07us | 722ns | 2.29us |
MPI_Type_get_extent | 25.09us | 0.00% | 72 | 348.47ns | 127ns | 958ns |
MPI_Query_thread | 23.46us | 0.00% | 24 | 977.71ns | 813ns | 1.50us |
MPI_Initialized | 17.52us | 0.00% | 24 | 730.12ns | 325ns | 1.15us |
Total | 6.01min | 100.00% | 481378 |
BACKEND_ZE | 2 Hostnames | 24 Processes | 32 Threads |
Name | Time | Time(%) | Calls | Average | Min | Max |
zeModuleCreate | 1.65min | 93.53% | 1260 | 78.52ms | 88.01us | 2.94s |
zeCommandListAppendMemoryCopy | 2.21s | 2.09% | 198146 | 11.16us | 4.65us | 1.99ms |
zeCommandListAppendLaunchKernel | 1.83s | 1.73% | 229951 | 7.96us | 5.83us | 2.24ms |
zeEventHostSynchronize | 1.63s | 1.54% | 213448 | 7.61us | 144ns | 1.83ms |
zeEventHostReset | 618.33ms | 0.58% | 427929 | 1.44us | 181ns | 1.29ms |
zeCommandQueueExecuteCommandLists | 123.55ms | 0.12% | 80518 | 1.53us | 1.08us | 620.24us |
zeMemGetAddressRange | 70.47ms | 0.07% | 441272 | 159.71ns | 122ns | 533.06us |
zeEventDestroy | 56.18ms | 0.05% | 98472 | 570.52ns | 137ns | 1.05ms |
zexDriverImportExternalPointer | 52.44ms | 0.05% | 96 | 546.30us | 19.31us | 717.93us |
zeKernelSetGroupSize | 38.86ms | 0.04% | 229951 | 169.00ns | 129ns | 313.42us |
zeEventCreate | 37.08ms | 0.04% | 98472 | 376.56ns | 224ns | 95.31us |
zeCommandListCreateImmediate | 27.44ms | 0.03% | 72 | 381.06us | 64.80us | 1.00ms |
zeContextMakeMemoryResident | 22.52ms | 0.02% | 96 | 234.57us | 5.69us | 749.01us |
zeModuleDestroy | 19.59ms | 0.02% | 1260 | 15.55us | 1.74us | 475.10us |
zeCommandListReset | 19.53ms | 0.02% | 80474 | 242.74ns | 182ns | 299.30us |
zeMemAllocDevice | 16.35ms | 0.02% | 96 | 170.36us | 14.93us | 331.10us |
zeMemFree | 16.34ms | 0.02% | 216 | 75.64us | 3.02us | 875.15us |
zeCommandListClose | 13.37ms | 0.01% | 80518 | 166.07ns | 130ns | 307.78us |
zeKernelCreate | 11.66ms | 0.01% | 4980 | 2.34us | 663ns | 22.81us |
zeMemAllocShared | 9.10ms | 0.01% | 72 | 126.33us | 23.36us | 280.39us |
zeDriverGetExtensionFunctionAddress | 4.02ms | 0.00% | 336 | 11.97us | 303ns | 257.23us |
zeCommandQueueCreate | 4.02ms | 0.00% | 64 | 62.75us | 9.60us | 218.51us |
zeKernelDestroy | 3.22ms | 0.00% | 4980 | 646.74ns | 211ns | 23.05us |
zeContextDestroy | 1.74ms | 0.00% | 48 | 36.27us | 855ns | 241.75us |
zeEventPoolCreate | 1.30ms | 0.00% | 72 | 18.00us | 7.56us | 45.93us |
zeMemAllocHost | 1.12ms | 0.00% | 48 | 23.26us | 13.35us | 32.95us |
zeDeviceGetSubDevices | 1.06ms | 0.00% | 2136 | 495.30ns | 149ns | 1.45us |
zexDriverReleaseImportedPointer | 1.01ms | 0.00% | 96 | 10.53us | 5.00us | 24.42us |
zeEventPoolDestroy | 991.51us | 0.00% | 72 | 13.77us | 5.33us | 29.80us |
zeCommandListCreate | 900.73us | 0.00% | 44 | 20.47us | 5.90us | 53.93us |
zeMemCloseIpcHandle | 588.25us | 0.00% | 50 | 11.76us | 7.35us | 31.52us |
zexMemOpenIpcHandles | 557.27us | 0.00% | 50 | 11.15us | 4.43us | 38.08us |
zeKernelSetIndirectAccess | 459.64us | 0.00% | 996 | 461.48ns | 180ns | 931ns |
zeCommandListDestroy | 417.36us | 0.00% | 116 | 3.60us | 785ns | 22.47us |
zeDeviceGet | 343.86us | 0.00% | 240 | 1.43us | 155ns | 35.11us |
zeModuleBuildLogDestroy | 200.46us | 0.00% | 996 | 201.27ns | 133ns | 946ns |
zeContextCreate | 134.03us | 0.00% | 96 | 1.40us | 980ns | 1.97us |
zeInit | 109.94us | 0.00% | 96 | 1.15us | 487ns | 3.00us |
zexMemGetIpcHandles | 104.26us | 0.00% | 16 | 6.52us | 829ns | 15.77us |
zeDriverGet | 85.08us | 0.00% | 168 | 506.40ns | 186ns | 949ns |
zeDeviceGetRootDevice | 74.26us | 0.00% | 312 | 238.02ns | 111ns | 723ns |
zeCommandQueueDestroy | 49.05us | 0.00% | 64 | 766.41ns | 384ns | 2.08us |
zeDriverGetApiVersion | 12.64us | 0.00% | 24 | 526.54ns | 416ns | 674ns |
zeMemPutIpcHandle | 8.43us | 0.00% | 8 | 1.05us | 959ns | 1.23us |
Total | 1.76min | 100.00% | 2198427 |
Device profiling | 2 Hostnames | 24 Processes | 24 Threads | 24 Devices | 24 Subdevices |
Name | Time | Time(%) | Calls | Average | Min | Max |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 373.05ms | 20.68% | 69551 | 5.36us | 3.20us | 27.04us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 248.76ms | 13.79% | 35200 | 7.07us | 5.60us | 39.20us |
zeCommandListAppendMemoryCopy(D2D) | 164.99ms | 9.15% | 80830 | 2.04us | 720ns | 11.04us |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 158.63ms | 8.79% | 23756 | 6.68us | 5.28us | 16.48us |
amrex::ParallelFor<256, amrex::mlndla[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 106.01ms | 5.88% | 6634 | 15.98us | 14.72us | 33.28us |
amrex::ParallelFor<256, amrex::MLPois[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 89.72ms | 4.97% | 14168 | 6.33us | 5.28us | 13.76us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 85.32ms | 4.73% | 4576 | 18.65us | 9.28us | 24.48us |
zeCommandListAppendMemoryCopy(D2H) | 35.39ms | 1.96% | 8491 | 4.17us | 1.04us | 33.52us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 31.76ms | 1.76% | 9521 | 3.34us | 1.60us | 19.84us |
amrex::ParallelFor<256, int, amrex::C[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 28.53ms | 1.58% | 7564 | 3.77us | 2.72us | 24.16us |
zeCommandListAppendMemoryCopy(D2M) | 28.49ms | 1.58% | 2376 | 11.99us | 2.32us | 21.60us |
amrex::launch<256, amrex::ReduceOps<a[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 27.39ms | 1.52% | 4150 | 6.60us | 3.20us | 15.52us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 27.21ms | 1.51% | 6707 | 4.06us | 2.40us | 10.88us |
amrex::ParallelFor<256, amr_wind::FPl[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 20.01ms | 1.11% | 176 | 113.71us | 59.20us | 178.88us |
amrex::ParallelFor<256, int, amrex::a[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 19.48ms | 1.08% | 2629 | 7.41us | 4.32us | 15.52us |
amrex::MLTensorOp::apply(int, int, am[...]nst::{lambda(sycl::_V1::nd_item<2>)#1} | 18.22ms | 1.01% | 936 | 19.47us | 18.24us | 26.24us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 16.09ms | 0.89% | 2234 | 7.20us | 4.32us | 14.40us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 15.37ms | 0.85% | 1521 | 10.11us | 4.64us | 18.40us |
amrex::ParallelFor<256, int, amrex::M[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 14.67ms | 0.81% | 2343 | 6.26us | 4.80us | 10.72us |
amrex::ParallelFor<256, amr_wind::FPl[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 14.25ms | 0.79% | 264 | 53.96us | 32.00us | 95.20us |
amrex::ParallelFor<256, amr_wind::Vel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 12.80ms | 0.71% | 88 | 145.48us | 136.32us | 158.72us |
amrex::ParallelFor<256, int, amrex::A[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 12.54ms | 0.70% | 2848 | 4.40us | 3.52us | 11.20us |
amrex::ParallelFor<256, amrex::MLPois[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 12.42ms | 0.69% | 3387 | 3.67us | 2.40us | 15.52us |
amrex::MLTensorOp::apply(int, int, am[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 12.17ms | 0.67% | 936 | 13.00us | 12.48us | 17.44us |
zeCommandListAppendMemoryCopy(H2D) | 11.55ms | 0.64% | 105873 | 109.05ns | 80ns | 214.32us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 10.76ms | 0.60% | 2565 | 4.20us | 2.88us | 11.36us |
amrex::launch<amrex::MLTensorOp::appl[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 9.51ms | 0.53% | 936 | 10.16us | 8.96us | 16.96us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES19_EUlNS17_7nd_itemILi1EEEE_ | 9.44ms | 0.52% | 1579 | 5.98us | 3.36us | 12.80us |
amrex::ParallelFor<256, amrex::GpuBnd[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 8.19ms | 0.45% | 768 | 10.67us | 7.20us | 17.76us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES1B_EUlNS19_7nd_itemILi1EEEE_ | 7.63ms | 0.42% | 1012 | 7.54us | 4.80us | 14.08us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 7.45ms | 0.41% | 1100 | 6.77us | 6.08us | 13.92us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 6.58ms | 0.36% | 1100 | 5.98us | 4.80us | 13.12us |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 6.48ms | 0.36% | 636 | 10.19us | 6.08us | 17.76us |
amrex::ParallelFor<256, int, PPM::Pre[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 6.24ms | 0.35% | 208 | 30.01us | 19.04us | 40.80us |
amrex::launch<256, amrex::ReduceOps<a[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 6.20ms | 0.34% | 456 | 13.59us | 6.24us | 29.12us |
amrex::ParallelFor<256, int, amrex::a[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 5.62ms | 0.31% | 858 | 6.55us | 3.52us | 13.44us |
amrex::ParallelFor<256, amrex::GpuBnd[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 5.30ms | 0.29% | 576 | 9.20us | 8.00us | 14.40us |
amrex::ParallelFor<256, int, amrex::M[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 4.20ms | 0.23% | 912 | 4.60us | 4.16us | 10.72us |
amrex::ParallelFor<256, int, amrex::M[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 4.05ms | 0.22% | 936 | 4.33us | 3.04us | 20.80us |
amrex::ParallelFor<256, int, amrex::a[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 3.78ms | 0.21% | 520 | 7.26us | 6.08us | 32.64us |
amrex::ParallelFor<256, int, int, God[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 3.77ms | 0.21% | 208 | 18.12us | 14.08us | 21.60us |
amrex::ParallelFor<256, int, int, int[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 3.76ms | 0.21% | 208 | 18.09us | 13.92us | 22.40us |
amrex::ParallelFor<256, int, PPM::Pre[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 3.73ms | 0.21% | 104 | 35.87us | 32.80us | 40.80us |
amrex::ParallelFor<256, int, int, God[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 3.72ms | 0.21% | 208 | 17.87us | 13.92us | 21.76us |
amrex::ParallelFor<256, int, int, God[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 3.69ms | 0.20% | 208 | 17.75us | 13.92us | 21.28us |
amrex::ParallelFor<256, amr_wind::Vel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 3.54ms | 0.20% | 88 | 40.24us | 39.20us | 43.04us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES1F_EUlNS1D_7nd_itemILi1EEEE_ | 3.10ms | 0.17% | 444 | 6.98us | 4.00us | 15.36us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.90ms | 0.16% | 728 | 3.98us | 2.72us | 10.88us |
amrex::ParallelFor<256, int, Godunov:[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.90ms | 0.16% | 208 | 13.93us | 10.56us | 17.76us |
amrex::ParallelFor<256, int, Godunov:[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.88ms | 0.16% | 208 | 13.86us | 10.40us | 16.96us |
amrex::ParallelFor<256, int, Godunov:[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.63ms | 0.15% | 208 | 12.62us | 9.60us | 15.84us |
amrex::ParallelFor<256, amrex::GpuBnd[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.59ms | 0.14% | 312 | 8.30us | 7.04us | 13.60us |
amrex::ParallelFor<256, int, int, int[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.57ms | 0.14% | 104 | 24.75us | 23.68us | 28.32us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.42ms | 0.13% | 448 | 5.40us | 1.44us | 20.48us |
amrex::ParallelFor<256, int, amrex::I[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.33ms | 0.13% | 528 | 4.42us | 3.36us | 11.20us |
amrex::ParallelFor<256, amrex::MultiM[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.27ms | 0.13% | 552 | 4.12us | 1.60us | 20.16us |
amrex::ParallelFor<256, amrex::MLCell[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.22ms | 0.12% | 416 | 5.33us | 4.16us | 11.68us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 2.18ms | 0.12% | 520 | 4.20us | 2.88us | 11.52us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES1C_EUlNS1A_7nd_itemILi1EEEE_ | 2.07ms | 0.11% | 474 | 4.36us | 3.36us | 14.88us |
amrex::MLNodeLinOp::buildMasks()::{la[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.91ms | 0.11% | 168 | 11.36us | 4.16us | 33.60us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.90ms | 0.11% | 320 | 5.95us | 3.84us | 21.76us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.82ms | 0.10% | 552 | 3.29us | 1.60us | 15.68us |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.74ms | 0.10% | 400 | 4.35us | 3.04us | 14.56us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.48ms | 0.08% | 267 | 5.54us | 4.00us | 11.68us |
amrex::ParallelFor<256, Godunov::Comp[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.40ms | 0.08% | 104 | 13.44us | 12.48us | 19.04us |
oneapi::mkl::rng::device::detail::ini[...]::mkl::rng::device::philox4x32x10<1> > | 1.39ms | 0.08% | 24 | 58.11us | 56.48us | 59.84us |
amrex::ParallelFor<256, int, HydroUti[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.39ms | 0.08% | 208 | 6.67us | 5.76us | 10.40us |
amrex::ParallelFor<256, Godunov::Extr[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.34ms | 0.07% | 104 | 12.85us | 12.00us | 16.80us |
amrex::ParallelFor<256, int, HydroUti[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.30ms | 0.07% | 208 | 6.27us | 4.80us | 11.52us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.30ms | 0.07% | 104 | 12.50us | 11.68us | 18.24us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.23ms | 0.07% | 208 | 5.93us | 5.28us | 13.12us |
amrex::ParallelFor<256, amr_wind::pde[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.22ms | 0.07% | 208 | 5.86us | 5.28us | 11.68us |
amrex::ParallelFor<256, Godunov::Extr[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.19ms | 0.07% | 104 | 11.45us | 10.56us | 17.44us |
amrex::ParallelFor<256, int, amrex::D[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.19ms | 0.07% | 312 | 3.82us | 3.04us | 10.24us |
amrex::ParallelFor<256, Godunov::Extr[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.18ms | 0.07% | 104 | 11.38us | 10.24us | 17.44us |
amrex::ParallelFor<256, int, amrex::M[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.16ms | 0.06% | 312 | 3.71us | 2.88us | 9.92us |
amrex::ParallelFor<256, Godunov::Extr[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.16ms | 0.06% | 104 | 11.11us | 10.40us | 15.52us |
amrex::ParallelFor<256, amr_wind::pde[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.14ms | 0.06% | 208 | 5.50us | 4.96us | 11.20us |
amrex::ParallelFor<256, amrex::MLNode[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.14ms | 0.06% | 112 | 10.15us | 9.12us | 15.68us |
amrex::ParallelFor<256, int, amrex::B[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.10ms | 0.06% | 208 | 5.30us | 3.36us | 11.36us |
amrex::ParallelFor<256, int, HydroUti[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.07ms | 0.06% | 208 | 5.14us | 4.16us | 10.88us |
amrex::ParallelFor<256, int, HydroUti[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.07ms | 0.06% | 208 | 5.13us | 4.16us | 10.72us |
amrex::ParallelFor<256, amr_wind::pde[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.05ms | 0.06% | 208 | 5.05us | 4.48us | 11.04us |
amrex::ParallelFor<256, amr_wind::pde[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 1.04ms | 0.06% | 208 | 4.98us | 4.48us | 10.72us |
amrex::ParallelFor<256, Godunov::Extr[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 992.64us | 0.06% | 104 | 9.54us | 7.84us | 17.44us |
amrex::ParallelFor<256, Godunov::Extr[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 945.60us | 0.05% | 104 | 9.09us | 8.00us | 15.36us |
amrex::ParallelFor<256, diffusion::fi[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 926.24us | 0.05% | 260 | 3.56us | 3.04us | 9.28us |
amrex::(anonymous namespace)::MLNodeL[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 912.64us | 0.05% | 126 | 7.24us | 3.52us | 13.60us |
amrex::ParallelFor<256, diffusion::fi[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 882.72us | 0.05% | 260 | 3.40us | 2.88us | 9.92us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES18_EUlNS16_7nd_itemILi1EEEE_ | 882.08us | 0.05% | 88 | 10.02us | 8.80us | 15.52us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES18_EUlNS16_7nd_itemILi1EEEE_ | 856.16us | 0.05% | 88 | 9.73us | 8.96us | 16.48us |
amrex::computeDivergence(amrex::Multi[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 851.04us | 0.05% | 104 | 8.18us | 7.36us | 14.08us |
amrex::ParallelFor<256, amr_wind::fvm[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 816.32us | 0.05% | 104 | 7.85us | 5.92us | 11.84us |
amrex::ParallelFor<256, amr_wind::ABL[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 804.16us | 0.04% | 156 | 5.15us | 4.16us | 11.04us |
amrex::ParallelFor<256, Godunov::Extr[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 758.08us | 0.04% | 104 | 7.29us | 6.08us | 10.24us |
amrex::ParallelFor<256, amr_wind::ABL[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 754.40us | 0.04% | 104 | 7.25us | 5.12us | 12.64us |
amrex::ParallelFor<256, amr_wind::tra[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 734.88us | 0.04% | 208 | 3.53us | 3.04us | 9.60us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 721.12us | 0.04% | 168 | 4.29us | 1.92us | 20.00us |
amrex::ParallelFor<256, amr_wind::tra[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 717.28us | 0.04% | 208 | 3.45us | 3.04us | 9.28us |
amrex::ParallelFor<256, amrex::OwnerM[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 717.12us | 0.04% | 126 | 5.69us | 1.44us | 11.52us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 714.72us | 0.04% | 88 | 8.12us | 7.52us | 12.16us |
amrex::MLPoissonT<amrex::MultiFab>::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 685.60us | 0.04% | 104 | 6.59us | 5.76us | 12.64us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 684.96us | 0.04% | 104 | 6.59us | 5.92us | 10.24us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 673.44us | 0.04% | 104 | 6.48us | 5.76us | 12.80us |
amrex::MLPoissonT<amrex::MultiFab>::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 669.76us | 0.04% | 104 | 6.44us | 5.60us | 12.48us |
amrex::MLPoissonT<amrex::MultiFab>::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 665.92us | 0.04% | 104 | 6.40us | 5.44us | 12.32us |
amrex::ParallelFor<256, amrex::MLNode[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 644.64us | 0.04% | 112 | 5.76us | 5.12us | 11.36us |
amrex::ParallelFor<256, amrex::MLNode[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 641.28us | 0.04% | 112 | 5.73us | 4.96us | 11.52us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 633.76us | 0.04% | 192 | 3.30us | 3.04us | 9.60us |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 631.68us | 0.04% | 112 | 5.64us | 4.48us | 12.16us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 614.72us | 0.03% | 104 | 5.91us | 5.12us | 11.68us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 612.80us | 0.03% | 65 | 9.43us | 5.76us | 12.80us |
amrex::ParallelFor<256, amrex::MLCell[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 593.44us | 0.03% | 104 | 5.71us | 4.64us | 11.68us |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 589.44us | 0.03% | 112 | 5.26us | 4.16us | 11.84us |
amrex::ParallelFor<256, amr_wind::Fix[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 526.56us | 0.03% | 104 | 5.06us | 3.52us | 11.36us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 515.04us | 0.03% | 104 | 4.95us | 4.16us | 10.88us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 501.92us | 0.03% | 104 | 4.83us | 4.00us | 10.88us |
amrex::ParallelFor<256, int, amrex::e[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 489.92us | 0.03% | 104 | 4.71us | 3.84us | 10.88us |
amrex::ParallelFor<256, int, incflo::[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 466.56us | 0.03% | 88 | 5.30us | 4.64us | 10.88us |
amrex::ParallelFor<256, int, amrex::M[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 457.76us | 0.03% | 112 | 4.09us | 3.36us | 9.92us |
amrex::ParallelFor<256, int, amrex::M[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 441.44us | 0.02% | 112 | 3.94us | 3.20us | 9.76us |
amrex::ParallelFor<256, int, amrex::F[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 427.04us | 0.02% | 134 | 3.19us | 2.88us | 9.44us |
amrex::ParallelFor<256, incflo::Apply[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 403.36us | 0.02% | 88 | 4.58us | 3.84us | 10.08us |
amrex::ParallelFor<256, amr_wind::fvm[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 365.28us | 0.02% | 52 | 7.02us | 5.76us | 13.12us |
amrex::ParallelFor<256, amr_wind::fvm[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 364.00us | 0.02% | 52 | 7.00us | 5.76us | 12.32us |
amrex::ParallelFor<256, amrex::mlndla[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 316.64us | 0.02% | 56 | 5.65us | 4.16us | 12.64us |
amrex::ParallelFor<256, unsigned long[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 313.92us | 0.02% | 48 | 6.54us | 1.28us | 8.32us |
amrex::ParallelFor<256, amrex::mlndla[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 311.20us | 0.02% | 56 | 5.56us | 4.64us | 11.36us |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 249.12us | 0.01% | 56 | 4.45us | 3.52us | 11.68us |
amrex::ParallelFor<256, int, amrex::S[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 187.52us | 0.01% | 24 | 7.81us | 6.40us | 10.56us |
amrex::launch<amrex::detail::Parallel[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 177.60us | 0.01% | 48 | 3.70us | 2.72us | 11.36us |
amrex::ParallelFor<256, int, incflo::[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 165.44us | 0.01% | 24 | 6.89us | 4.64us | 11.20us |
zeCommandListAppendMemoryCopy(M2D) | 162.64us | 0.01% | 576 | 282.36ns | 80ns | 6.48us |
amrex::ParallelFor<256, incflo::Apply[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 146.08us | 0.01% | 24 | 6.09us | 3.84us | 10.08us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES18_EUlNS16_7nd_itemILi1EEEE_ | 105.76us | 0.01% | 8 | 13.22us | 12.96us | 13.44us |
amrex::ParallelFor<256, amr_wind::ABL[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 105.76us | 0.01% | 8 | 13.22us | 12.96us | 13.60us |
_ZTSZZN5amrex6launchILi256EZNS_9Reduc[...]lerEE_clES18_EUlNS16_7nd_itemILi1EEEE_ | 102.56us | 0.01% | 8 | 12.82us | 12.16us | 13.44us |
amrex::ParallelFor<256, amr_wind::ABL[...]nst::{lambda(sycl::_V1::nd_item<1>)#1} | 88.00us | 0.00% | 8 | 11.00us | 10.40us | 11.68us |
Total | 1.80s | 100.00% | 428097 |
Explicit memory traffic (BACKEND_MPI) | 2 Hostnames | 24 Processes | 24 Threads |
Name | Byte | Byte(%) | Calls | Average | Min | Max |
MPI_Irecv | 983.52MB | 49.96% | 173930 | 5.65kB | 32B | 82.94kB |
MPI_Isend | 983.52MB | 49.96% | 173930 | 5.65kB | 32B | 82.94kB |
MPI_Allreduce | 1.51MB | 0.08% | 21703 | 69.43B | 8B | 1.15kB |
MPI_Bcast | 70.90kB | 0.00% | 48 | 1.48kB | 8B | 2.95kB |
MPI_Reduce | 4.22kB | 0.00% | 336 | 12.57B | 8B | 16B |
Total | 1.97GB | 100.00% | 369947 |
Explicit memory traffic (BACKEND_ZE) | 2 Hostnames | 24 Processes | 24 Threads |
Name | Byte | Byte(%) | Calls | Average | Min | Max |
zeContextMakeMemoryResident | 1.24TB | 99.90% | 96 | 12.89GB | 1B | 51.54GB |
zeCommandListAppendMemoryCopy(D2D) | 916.67MB | 0.07% | 80830 | 11.34kB | 72B | 82.94kB |
zeCommandListAppendMemoryCopy(H2D) | 224.00MB | 0.02% | 105873 | 2.12kB | 24B | 5.69kB |
zeCommandListAppendMemoryCopy(D2H) | 68.51MB | 0.01% | 8491 | 8.07kB | 8B | 1.33MB |
zeCommandListAppendMemoryCopy(D2M) | 1.32MB | 0.00% | 2376 | 554.67B | 384B | 1.15kB |
zeCommandListAppendMemoryCopy(M2D) | 29.95kB | 0.00% | 576 | 52.00B | 24B | 144B |
Total | 1.24TB | 100.00% | 198242 |
iprof trace timeline view¶
$ mpirun -n 24 --ppn 12 gpu_tile_compact.sh iprof -l -- ../amr_wind abl_godunov.inp
==============================================================================
AMR-Wind (https://github.com/exawind/amr-wind)
AMR-Wind version :: v3.4.2
AMR-Wind Git SHA :: ed475a0533dfacf1fdff0b707518ccf99040d9f9
AMReX version :: 25.04-9-g30a9768150c4
...<skipping application standard output>...
AMReX (25.04-9-g30a9768150c4) finalized
THAPI: Trace location: /home/jkwack/thapi-traces/thapi_interval--2025-05-18T22:37:27-05:00
THAPI: Perfetto trace location: out.pftrace
Download out.pftrace and open it with Perfetto
References¶
THAPI github repository
2025 ALCF INCITE Hackathon virtual week
